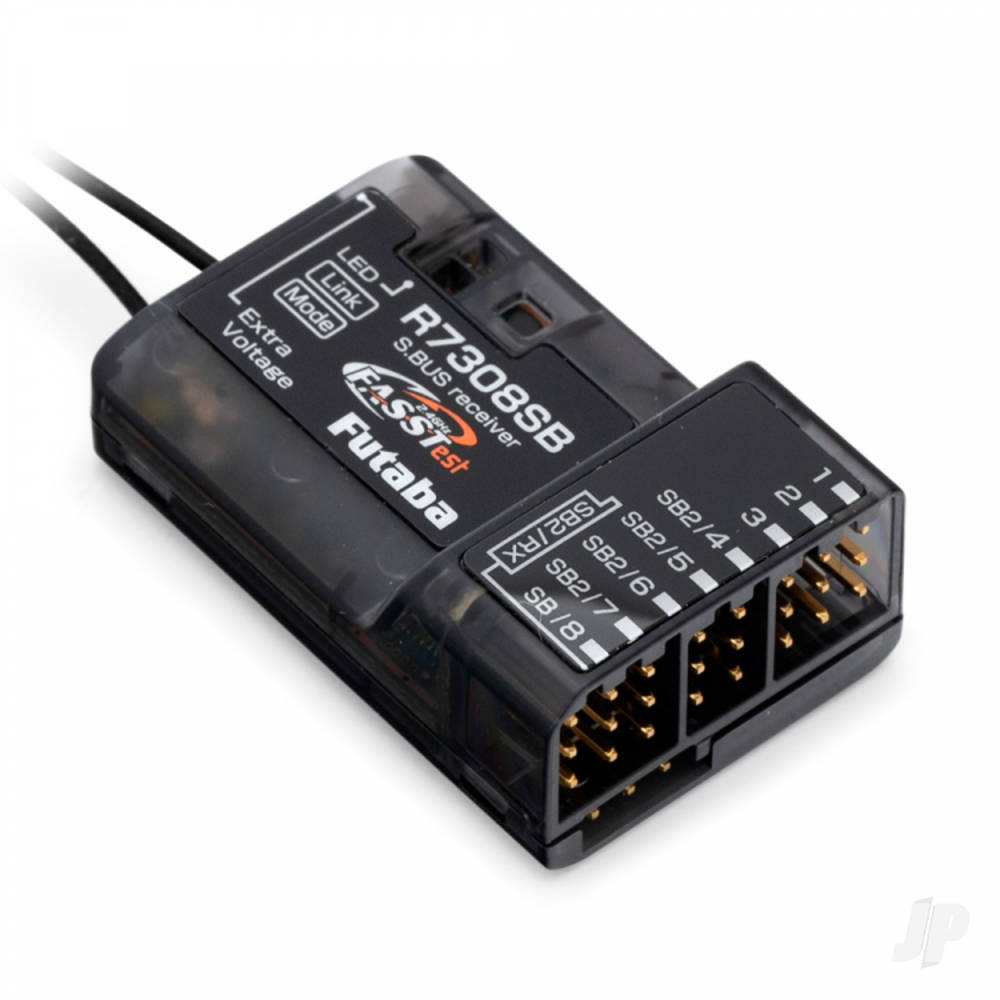

FUTABA R7308SB 8-CHANNEL AIR RECEIVER (18-CHANNEL S.BUS) FASSTEST – HIGH GAIN AERIALS

Description

FUTABA R7308SB 8-CHANNEL AIR RECEIVER (18-CHANNEL S.BUS) FASSTEST – HIGH GAIN AERIALS

The R7308SB receiver features bi-directional communication with a FASSTest Futaba transmitter using the S.BUS2 port. Using the S.BUS2 port an impressive array of telemetry sensors cmay be ultized. It also includes standard PWM output ports (1-8ch) and S.BUS output ports. The R7308SB can also be switched to the Dual RX Link system. This system can ensure safety by mounting two FASSTest receivers in te same aircraft.

Features:

FASSTest-2.4GHz Bi-directional Comunication System (18ch & 12ch Mode)
Dual RX Link System Equipment
S.BUS / S.BUS2 Port and 8-channels for Conventional Systems
Dual Antenna Diversity

Specs:

Power requirement: 3.7-7.4V
(Voltage Range: 3.5-8.4V)
Extra Voltage Port: Max 70VDC
Size: 38.8×24.9×14.3mm
Weight: 11g
