£1,799.95
Out of stock Product is not in our store or currently available from our supplier. The item can still be ordered but lead times will vary.
Description
Description

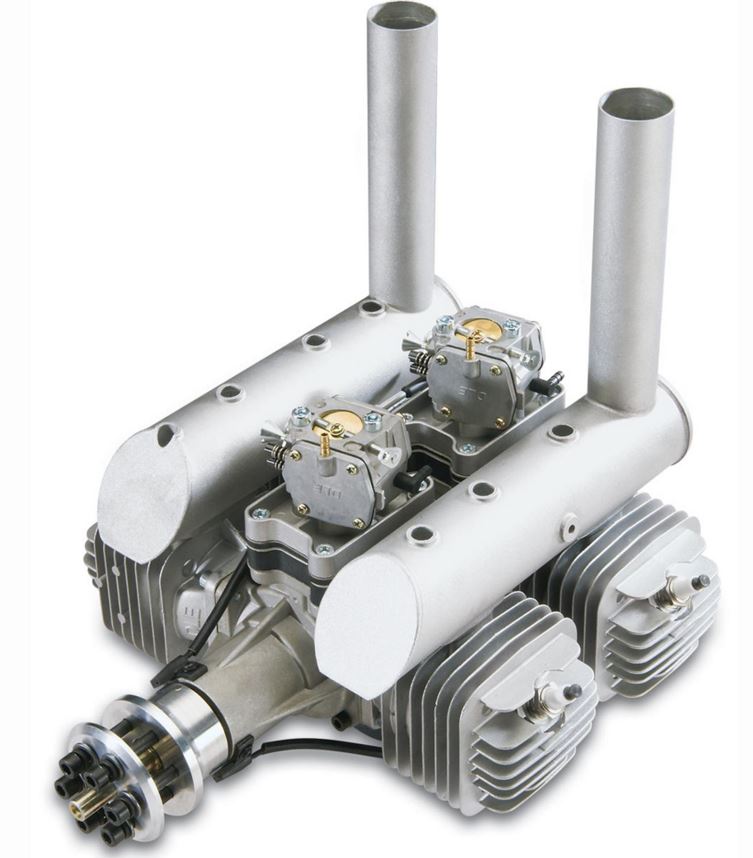

DLE 222 4 Cylinder Two-Stroke Petrol Engine DLE-222 222cc
BIG POWER FOR BIG AIRCRAFT
At 21.5 horsepower, the DLE-222 has more than enough power to push your plane through the air. And with an all-up weight of just over twelve pounds, it has the power-to-weight balance to make the most of it. Dual carbs help you fine tune it, sealed bearings keep it running smoothly and two mufflers keep it down to a dull roar. And for all you get – including mufflers, mount, standoffs and a 6-bolt prop hub – the value-to-price ratio is impressive, too.
IMPORTANT NOTICE: We highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.
Specifications:
Displacement: | 222.5 cc (13.6 cu in) |
Bore: | 1.77 in (45 mm) |
Stroke: | 1.38 in (35 mm) |
Weight: | 12.37 lb (5.61 kg) |
RPM Range: | 1,000-7,500 |
Output: | 21.5 hp @ 7,500 rpm |
Requires: | Unleaded Petrol (Gasoline), oil, ignition battery & propeller |
Includes: | Dual electronic ignition, 2 mufflers, 4 spark plugs, gaskets, bolts, machined aluminum standoffs, 6-bolt prop hub, tdrottle arm extension, mount & mounting template |
Recommended Prop: | 32×10, 32×12 & 34×10 |
Technical Data:
Ignition Battery: | Two 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo Packs (Voltage regulator required witd LiPo or LiFe use.) |
Petrol/Oil Mix: | 30:1 |
Compression Ratio: | 7.6:1 |
DLE 222 4 Cylinder Two-Stroke Petrol Engine DLE-222 222cc
For other sized DLE Engines click here: DLE Engines
News on Aircraft clubs and restrictions click here: https://bmfa.org/
Specification
Specification
Fuel Type | Petrol |
---|---|
Brand | DLE Engines |
