DLE 222 4 Cylinder Two-Stroke Petrol Engine DLE-222 222cc
£1,799.95
Description
Description

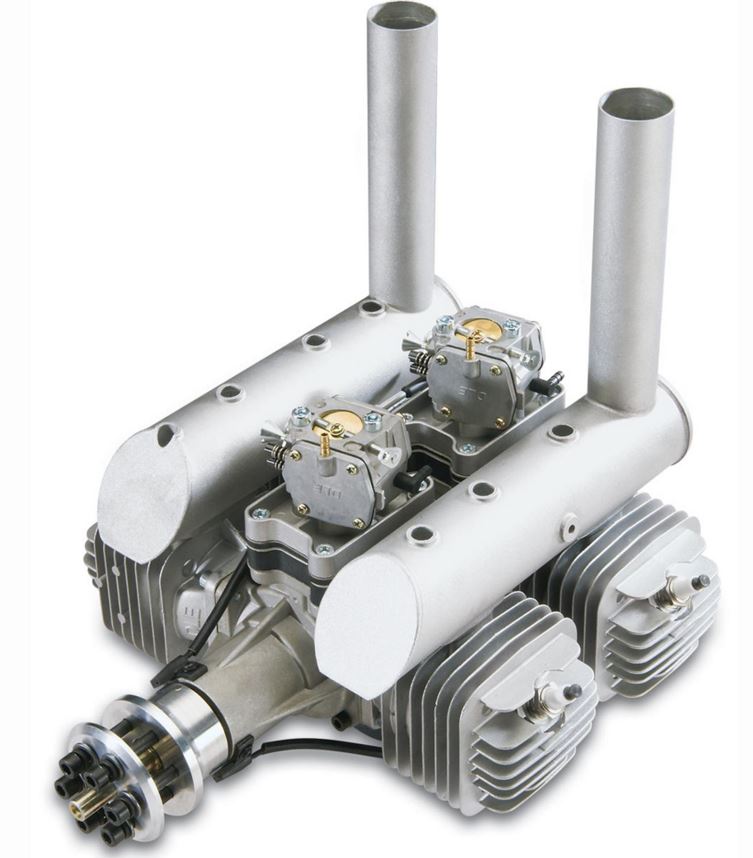

DLE 222 4 Cylinder Two-Stroke Petrol Engine DLE-222 222cc
BIG POWER FOR BIG AIRCRAFT
At 21.5 horsepower, the DLE-222 has more than enough power to push your plane through the air. And with an all-up weight of just over twelve pounds, it has the power-to-weight balance to make the most of it. Dual carbs help you fine tune it, sealed bearings keep it running smoothly and two mufflers keep it down to a dull roar. And for all you get – including mufflers, mount, standoffs and a 6-bolt prop hub – the value-to-price ratio is impressive, too.
IMPORTANT NOTICE: We highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.
Specifications:
| Displacement: | 222.5 cc (13.6 cu in) |
| Bore: | 1.77 in (45 mm) |
| Stroke: | 1.38 in (35 mm) |
| Weight: | 12.37 lb (5.61 kg) |
| RPM Range: | 1,000-7,500 |
| Output: | 21.5 hp @ 7,500 rpm |
| Requires: | Unleaded Petrol (Gasoline), oil, ignition battery & propeller |
| Includes: | Dual electronic ignition, 2 mufflers, 4 spark plugs, gaskets, bolts, machined aluminum standoffs, 6-bolt prop hub, tdrottle arm extension, mount & mounting template |
| Recommended Prop: | 32×10, 32×12 & 34×10 |
Technical Data:
| Ignition Battery: | Two 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo Packs (Voltage regulator required witd LiPo or LiFe use.) |
| Petrol/Oil Mix: | 30:1 |
| Compression Ratio: | 7.6:1 |
DLE 222 4 Cylinder Two-Stroke Petrol Engine DLE-222 222cc
For other sized DLE Engines click here: DLE Engines
News on Aircraft clubs and restrictions click here: https://bmfa.org/
Specification
Specification
| Fuel Type | Petrol |
|---|---|
| Brand | DLE Engines |
Reviews
Only logged in customers who have purchased this product may leave a review.
Related products
-
10% OFF
Hi-Temp Silicone 15mm ID x 150mm 350°C
Product Code: L-LST15HT
Original price was: £3.99.£3.59Current price is: £3.59.Save £0.40In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
-
10% OFF
Hi-Temp Silicone 11mm ID x 150mm 350°C
Product Code: L-LST11HT
Original price was: £3.75.£3.39Current price is: £3.39.Save £0.36 -
10% OFF
Saito FA-180B engine
Product Code: SAT180B
Original price was: £599.99.£539.99Current price is: £539.99.Save £60.00Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
-
15% OFF
O.S. MAX 120AX Ring w/E-5020 Sil.
Product Code: L-OS19210
Original price was: £319.99.£271.99Current price is: £271.99.Save £48.00In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
-
15% OFF
O.S. MAX 15LA Silv. w/871 Silencer L-OS11532
Product Code: L-OS11532
Original price was: £104.99.£89.24Current price is: £89.24.Save £15.75In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
-
10% OFF
Saito FA-200R3 radial engine
Product Code: SAT200R3
Original price was: £1,019.95.£917.95Current price is: £917.95.Save £102.00Supplier stock Product is currently available from our supplier and can usually be dispatched within a few days.
-
10% OFF
O.S. MAX 75AX w/E-4020 Silencer L-OS17400
Product Code: L-OS17400
Original price was: £294.99.£265.99Current price is: £265.99.Save £29.00In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
-
14% OFF

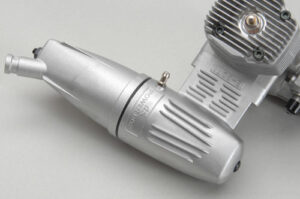

O.S. MAX 55AX w/E-3070 Silencer L-OS15612
Product Code: L-OS15612
Original price was: £174.99.£149.99Current price is: £149.99.Save £25.00In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
-
5% OFF

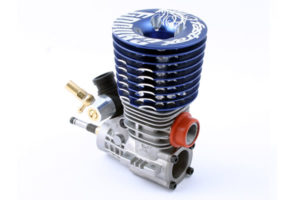

FASTRAX ‘ENDURO’ TWENTY ONE 3-PORT NITRO ENGINE N/PS
