DLE 20 Two-Stroke Petrol Engine DLE-20 20cc
£259.95
In stock Product is on the shelf in our store and can usually be dispatched the same day if ordered before 14:30, or collected from the store once order confirmation is received
Description
Description

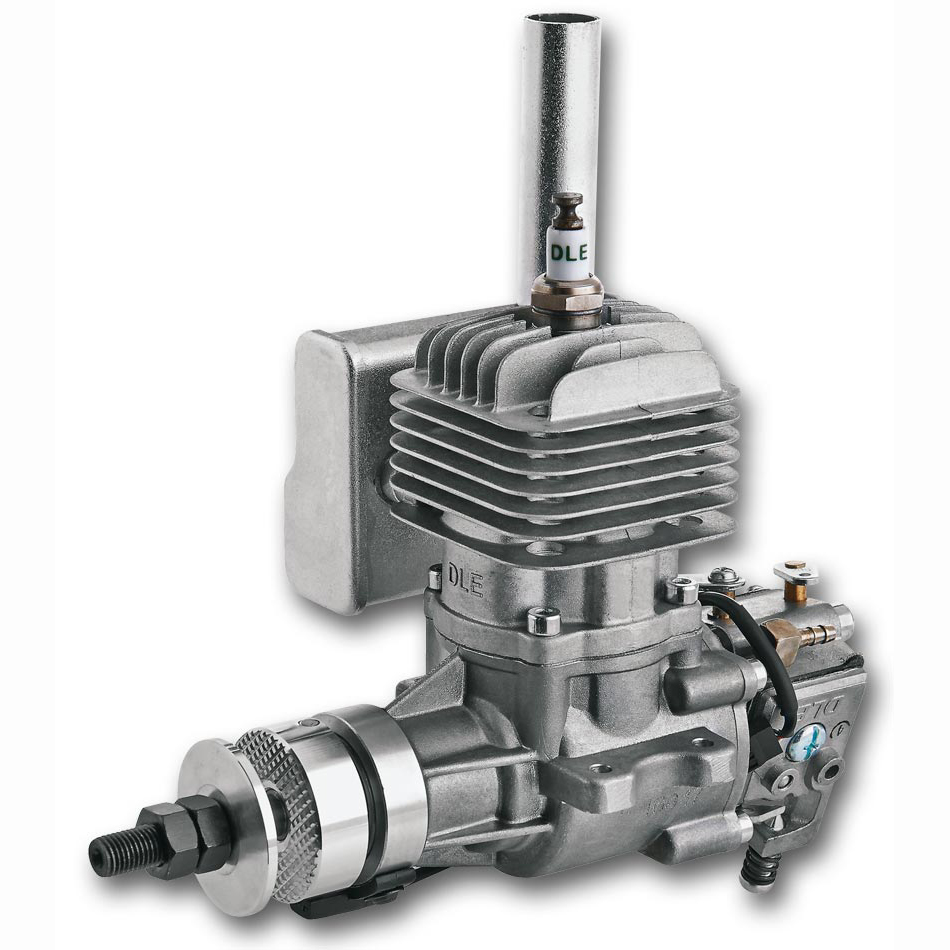

DLE 20 Two-Stroke Petrol Engine DLE-20 20cc
GLOW SIZE – PETROL ECONOMY & EASE!
Glow power isn’t the only option anymore. The DLE-20 not only fills the displacement gap, but includes a beam mount to make the glow-to-gasoline upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.

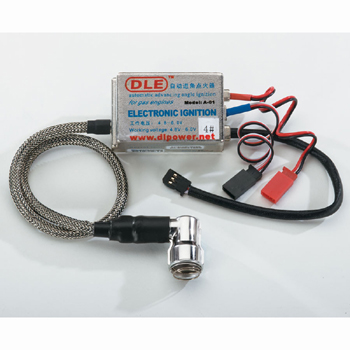

A generous package of “extras” and electronic ignition for starting ease and top performance make the DLE-20 an attractive alternative to glow…and a solid buy for value and performance.
IMPORTANT NOTICE: We highly recommend using NGK-CM6 spark plugs with this engine for optimum performance.
SPECIFICATIONS:
| Displacement: | 20 cc (1.22 cu in) |
|---|---|
| Bore: | 1.3 in (32 mm) |
| Stroke: | 1.0 in (25 mm) |
| Weight: | 28.9 oz (820 g) |
| RPM Range: | 1,750-9,000 |
| Output: | 2.5 hp @ 9,000 rpm |
| Requires: | Petrol(Gasoline), 2-cycle oil, ignition battery & propeller |

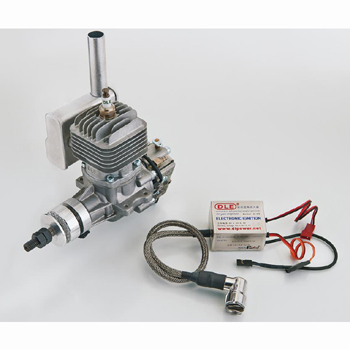

| Includes: | Electronic Ignition, Muffler, Spark Plug, Gasket, Bolts,Throttle Arm Extension and Instruction Manual |
| Recommended Prop: | 14×10, 15×8, 16×6, 16×8, 17×6 |
TECHNICAL DATA:
| Ignition Battery: | 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (Voltage regulator required with LiPo or LiFe pack.) |
|---|---|
| Compression Ratio: | 10.5:1 |
| Petrol/Oil Mix: | 30:1 |
| Weight Breakdown: | Engine: 22.9 oz (650 g); Muffler: 1.8 oz (50 g); Ignition: 4.2 oz (120 g) |
DLE 20 Two-Stroke Petrol Engine DLE-20 20cc
For other sized DLE Engines click here: DLE Engines
News on Aircraft clubs and restrictions click here: https://bmfa.org/
