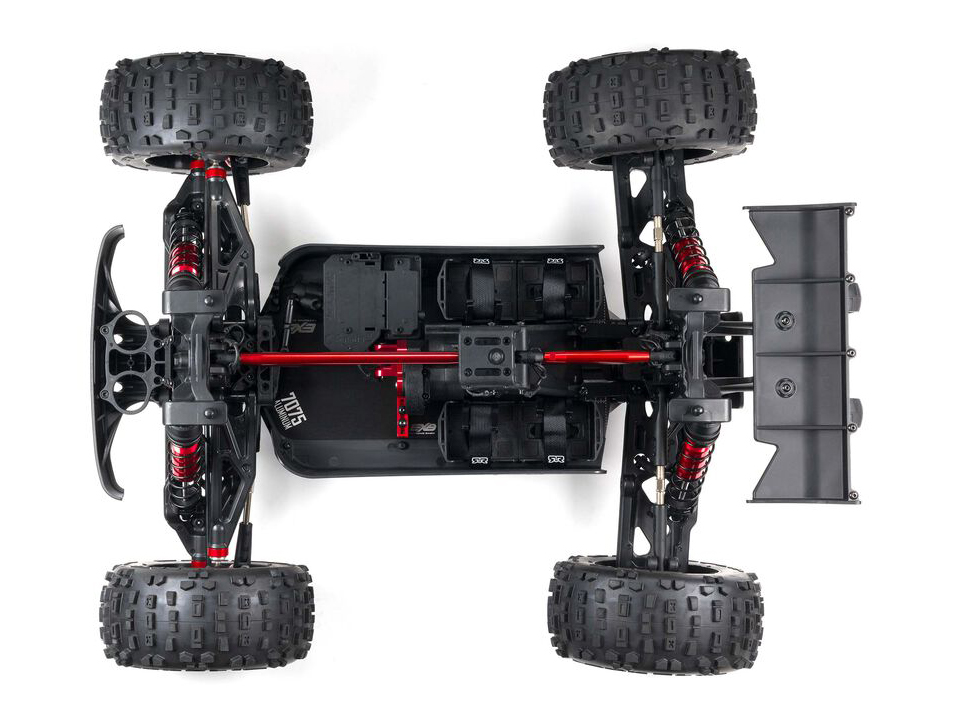

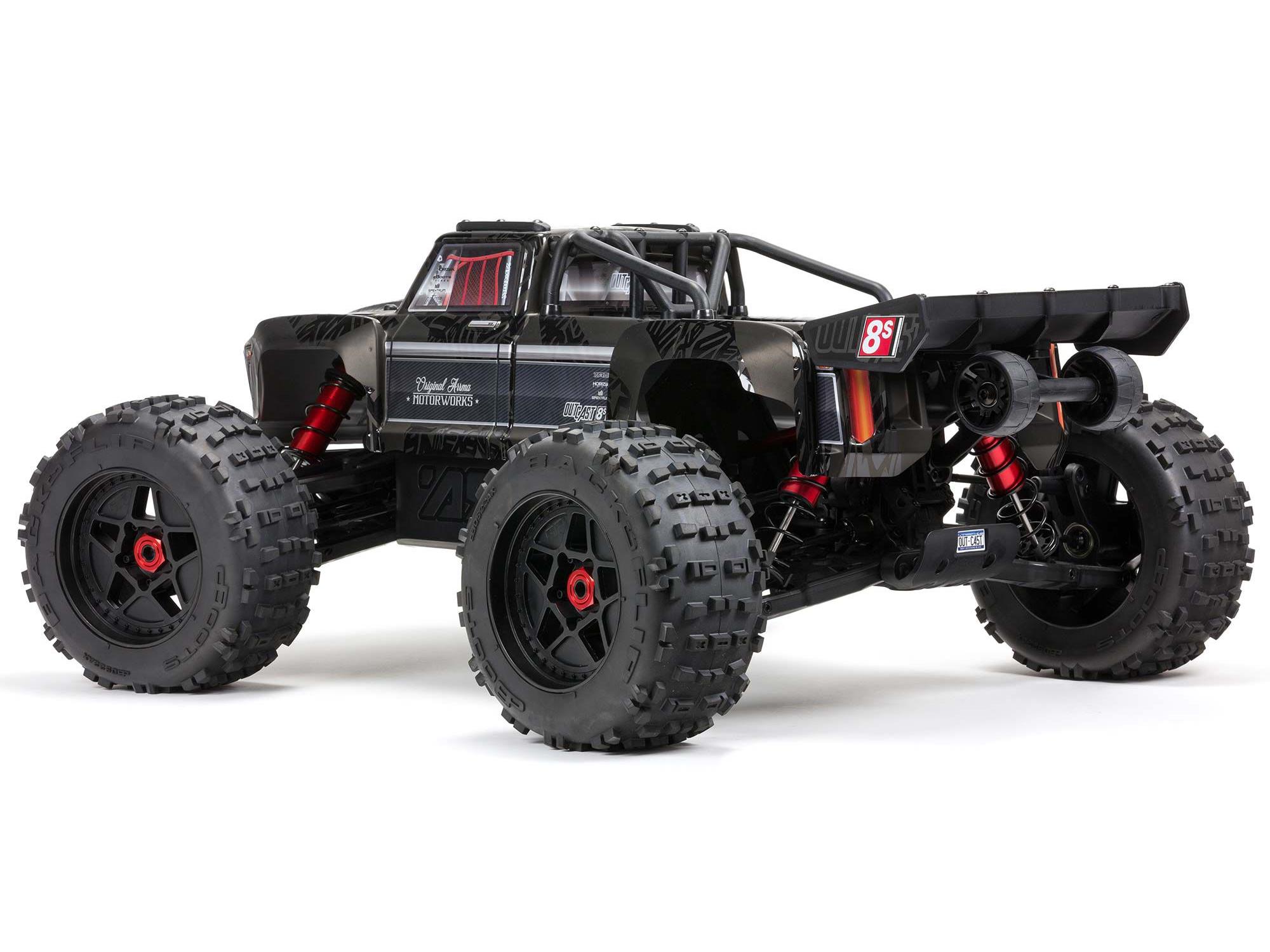

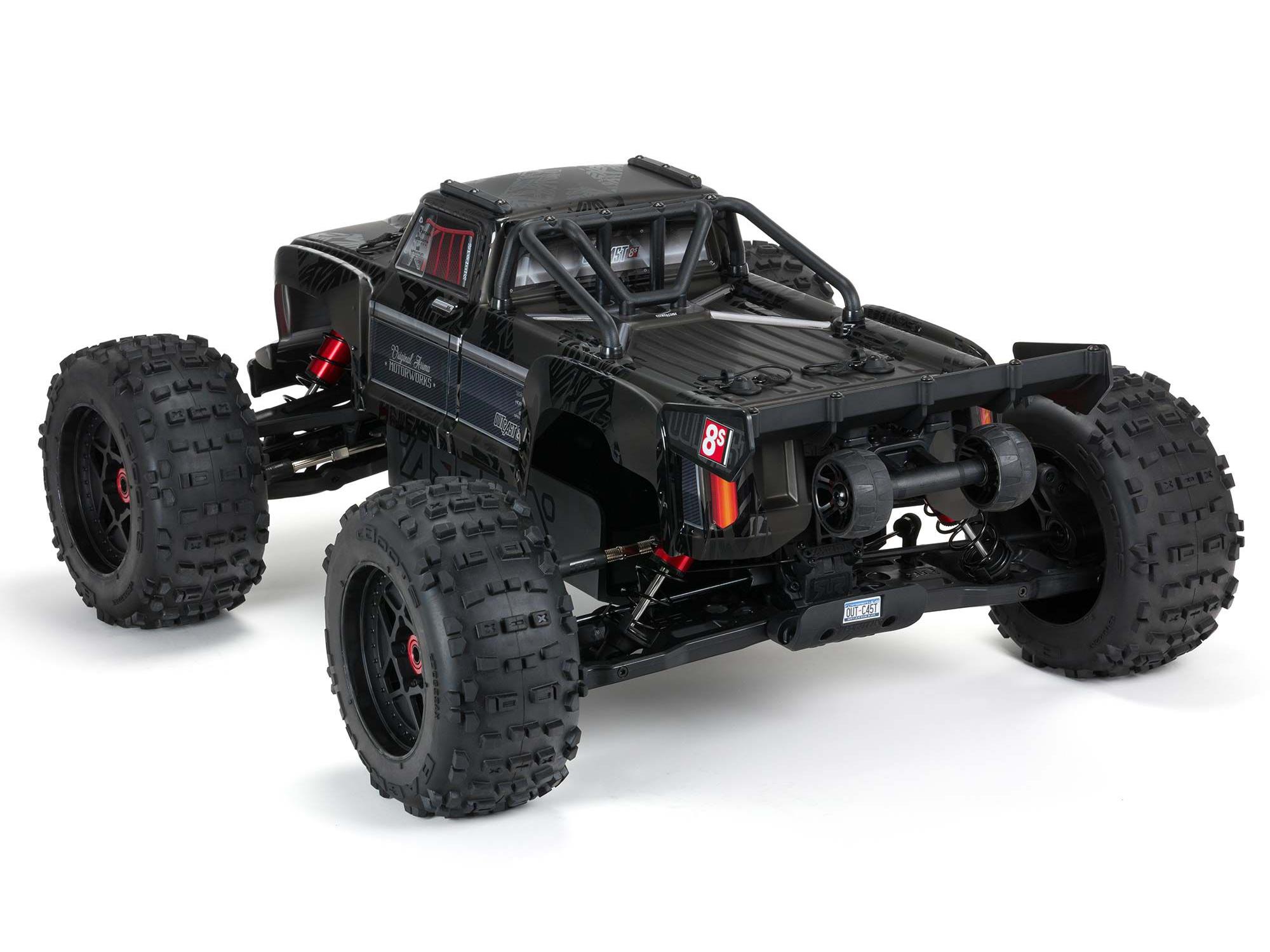

Arrma 1/5 OUTCAST 4WD EXB

This is ARRMA® bashing performance at its biggest and best! Fully assembled and ready to complete with your choice of radio and 8S brushless power system, the 1/5 OUTCAST™ 4WD EXtreme Bash Stunt Truck Roller is the perfect platform for blasting over rough terrain and performing flips and tricks with ease.

Equipped right out of the box with a premium package of EXtreme Bash (EXB) parts and options, the 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller is the top-of-the-line ARRMA® large-scale stunt vehicle. It has extra toughness everywhere it counts. Components receiving the EXB treatment include the 5mm thick EXB 7075 T6 CNC aluminium laser-etched chassis plate; EXB red-anodised CNC aluminium front brace mount; and exclusive EXB matte and gloss effect finished body for a look unlike any other vehicle.

With adjustable, oil-filled, 20mm bore shocks on ultra-thick composite towers soaking up the bumps, the 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller blasts over dirt, asphalt, and grass — all terrain and all conditions. Long-lasting dBoots® Back-Flip tyres on multi-spoke wheels with durable hubs add all-terrain traction. Everything in the durable design contributes to confident control and responsive handling.

A centre body support, aluminium centre braces and composite chassis side pods add more strength. All-metal diff outdrives and gearbox internals, plus durable steel driveshafts, provide a reliable, heavy-duty drivetrain that holds up to demanding stunts and brutal terrain.

ARRMA® engineering also cuts your maintenance time to the minimum. The 1/5 OUTCAST™ 4WD EXB Stunt Truck Roller has an efficient, driver-friendly design, with easy-access front and rear diff modules and a sliding mount for fast, hassle-free motor access. The easy-access, moulded electronics module contains a waterproof receiver box, servo mount and ESC tray, and is ready to protect your choice of electronics from dirt and moisture.

It all adds up to make the 1/5 OUTCAST™ 4WD EXtreme Bash Stunt Truck Roller more than just massive and powerful. It’s the ultimate ARRMA® stunt bash machine for the ultimate large-scale experience.



Fully assembled and ready for your choice of electronics, the ARRMA OUTCAST 1/5 4WD Extreme Bash Stunt Truck Roller adds extra toughness everywhere it counts – making it the ultimate platform for performing stunts and bashing over brutal terrain.

Features

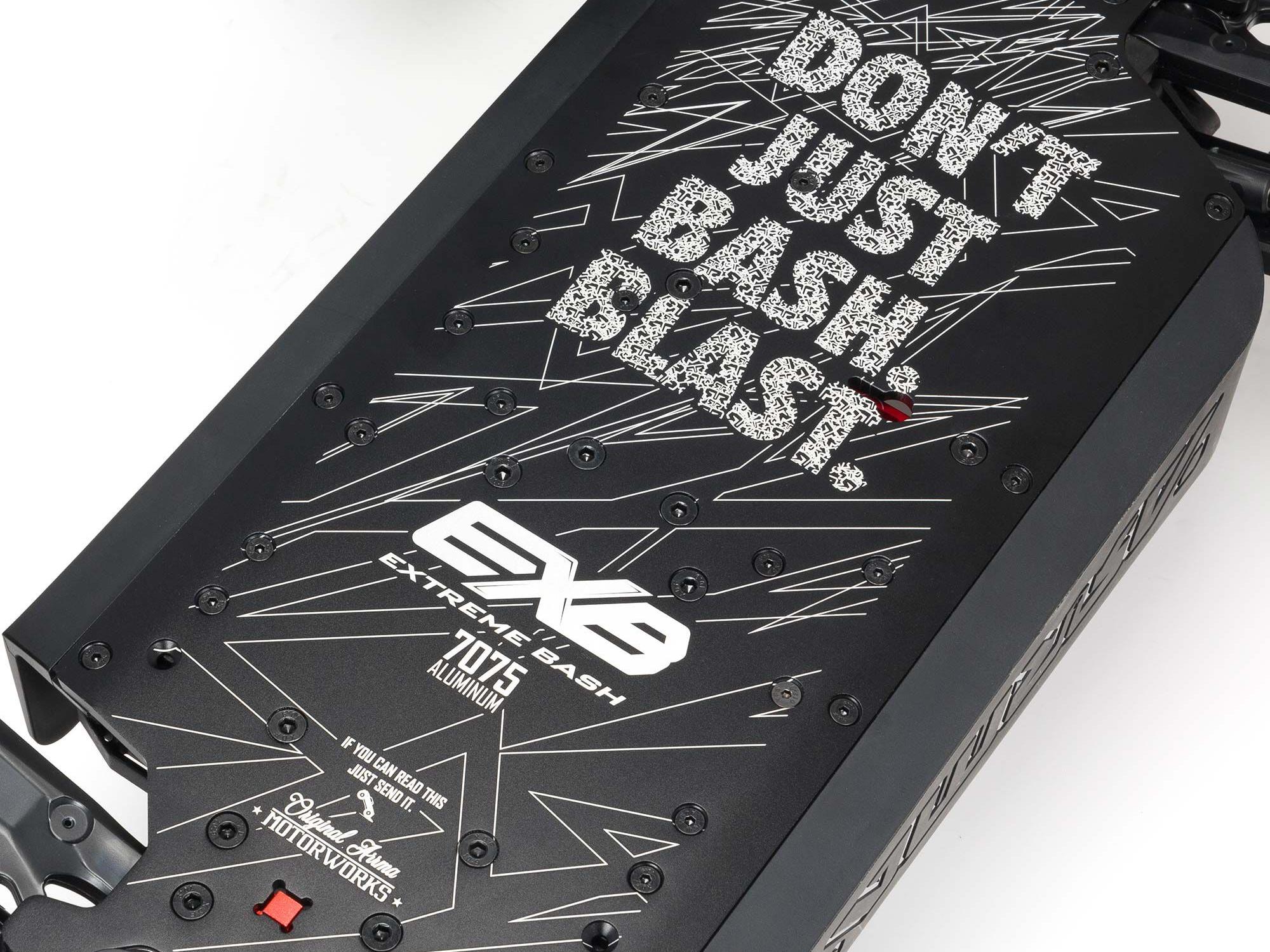

  • EXB 7075 T6 5mm thick CNC aluminium laser-etched chassis plate
  • EXB Red-anodised CNC aluminium front brace mount

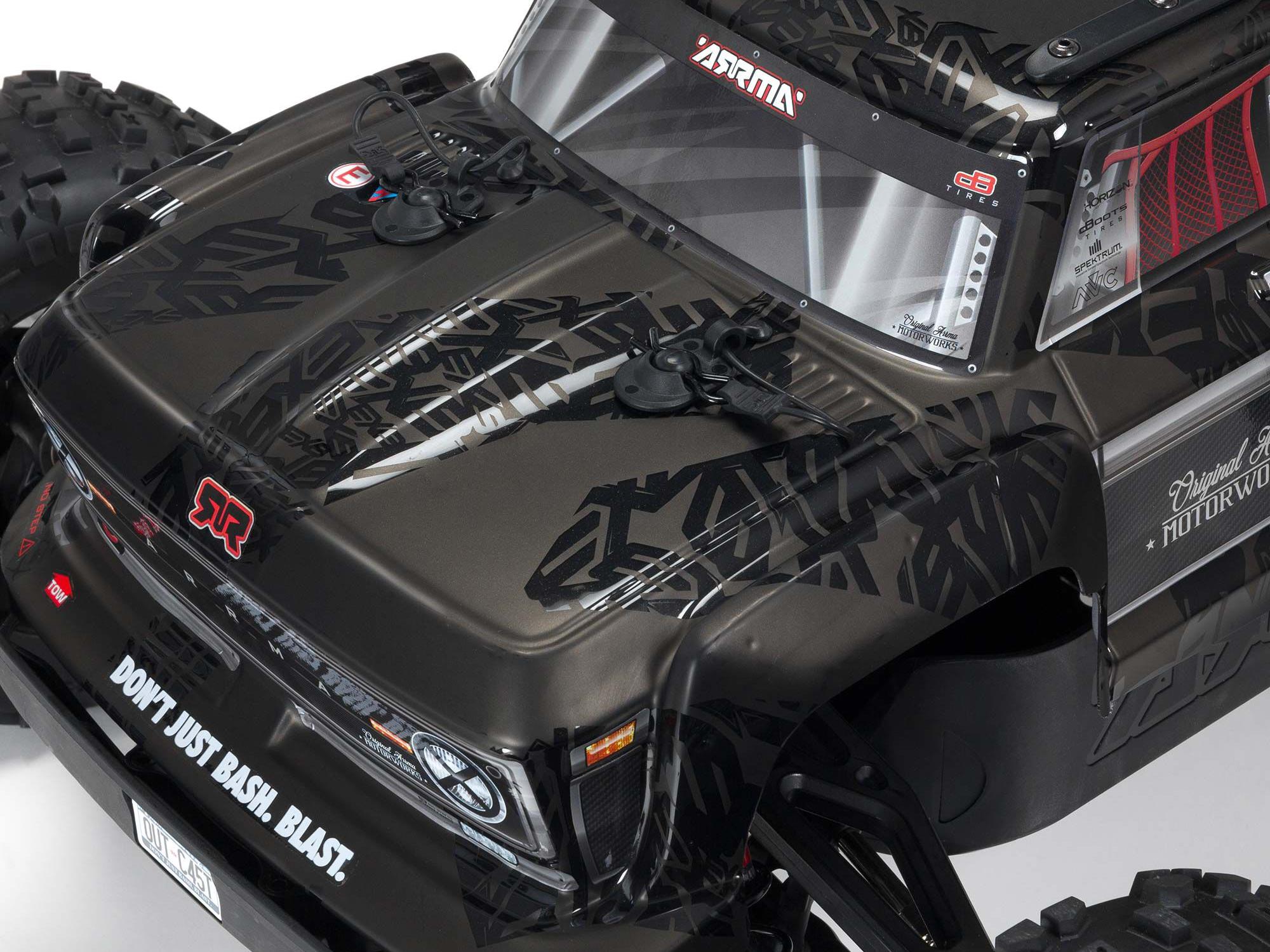

  • EXB Matte and gloss effect body
  • Heavy-duty 8mm thick steel rear turnbuckles
  • Heavy-duty 7mm thick steel steering turnbuckles

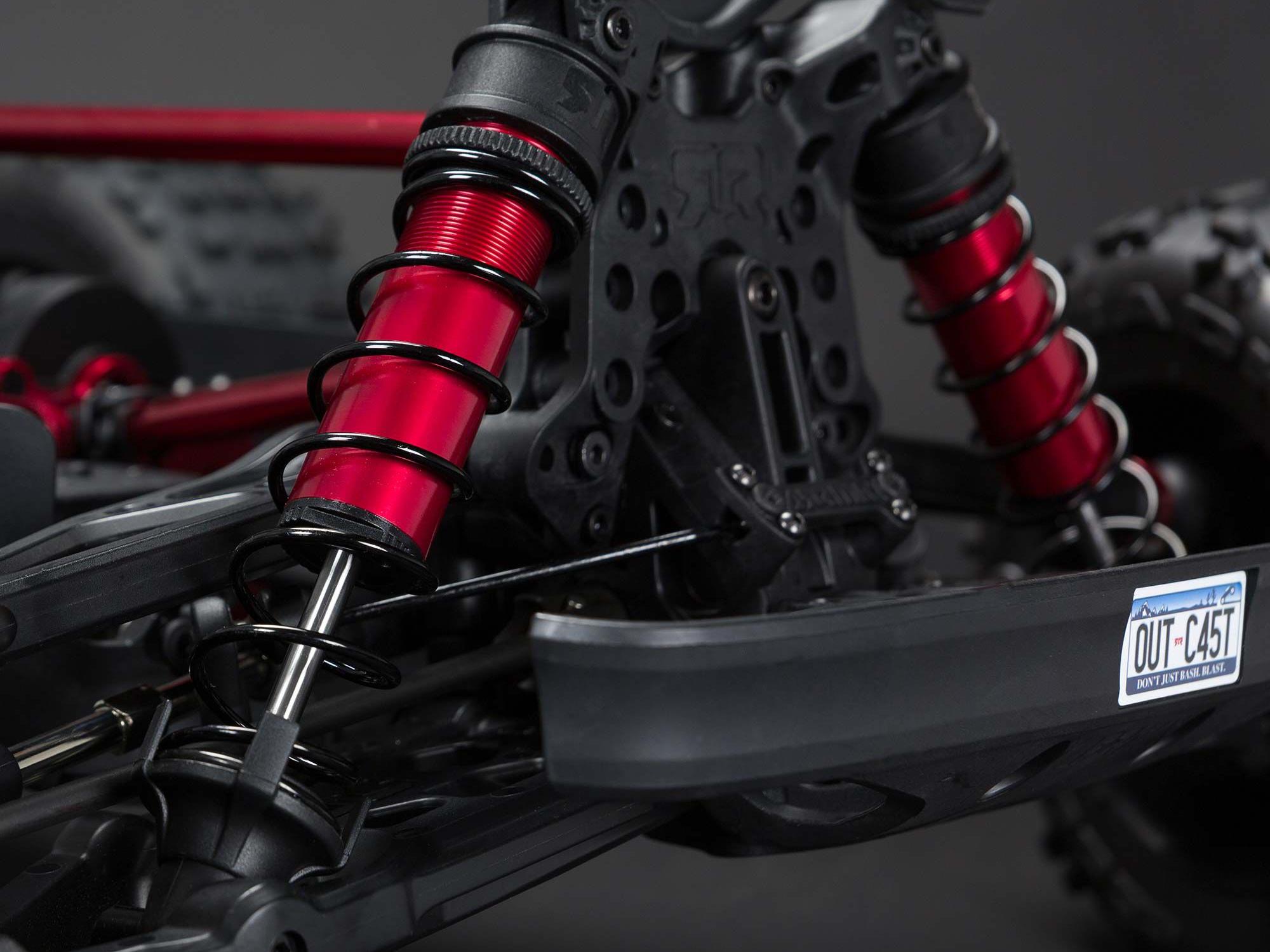

  • Oil-filled adjustable 20mm bore shocks with 6mm thick shock shafts and new plush shock tuning
  • Heavy-duty servo saver springs
  • Front and rear sway bars
  • Red-anodised aluminium 49 and 56 series motor plates
  • dBoots® Back-Flip tyres
  • 47T and optional 39T Spur Gear
  • Servo mounts for 1/5 and 1/6 servos

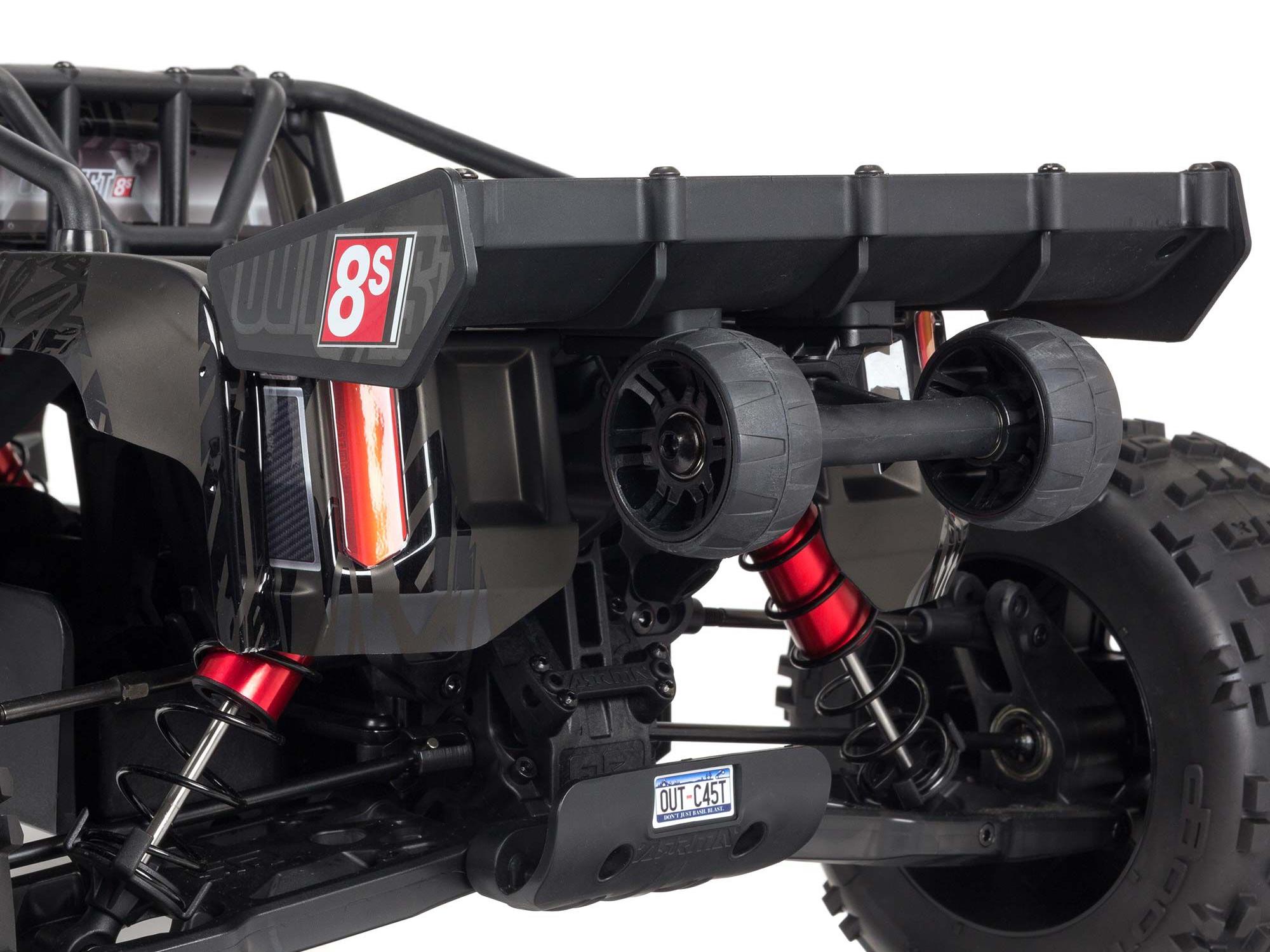

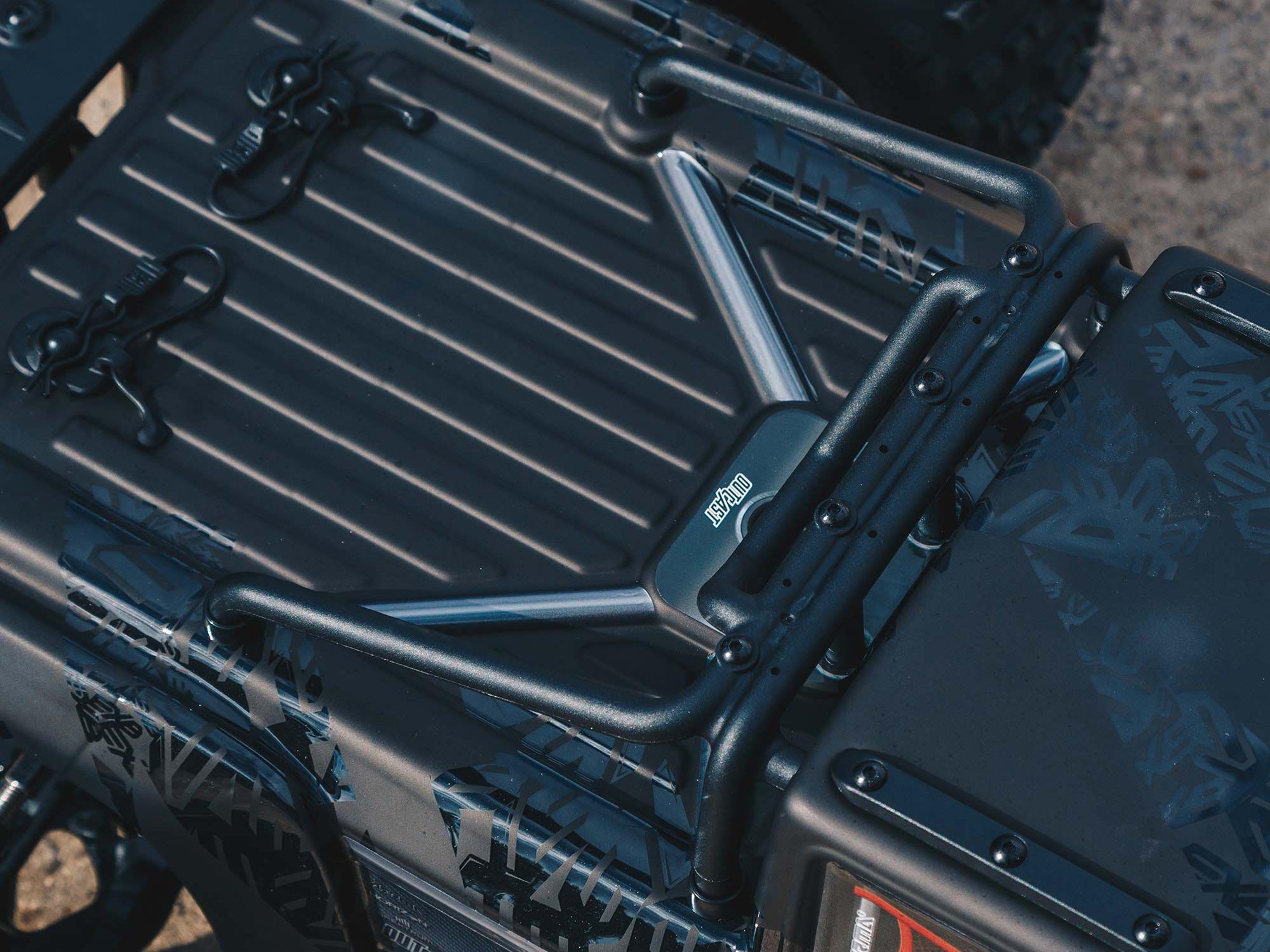

  • Wheelie bar
  • Front bumper with impact-absorbing design

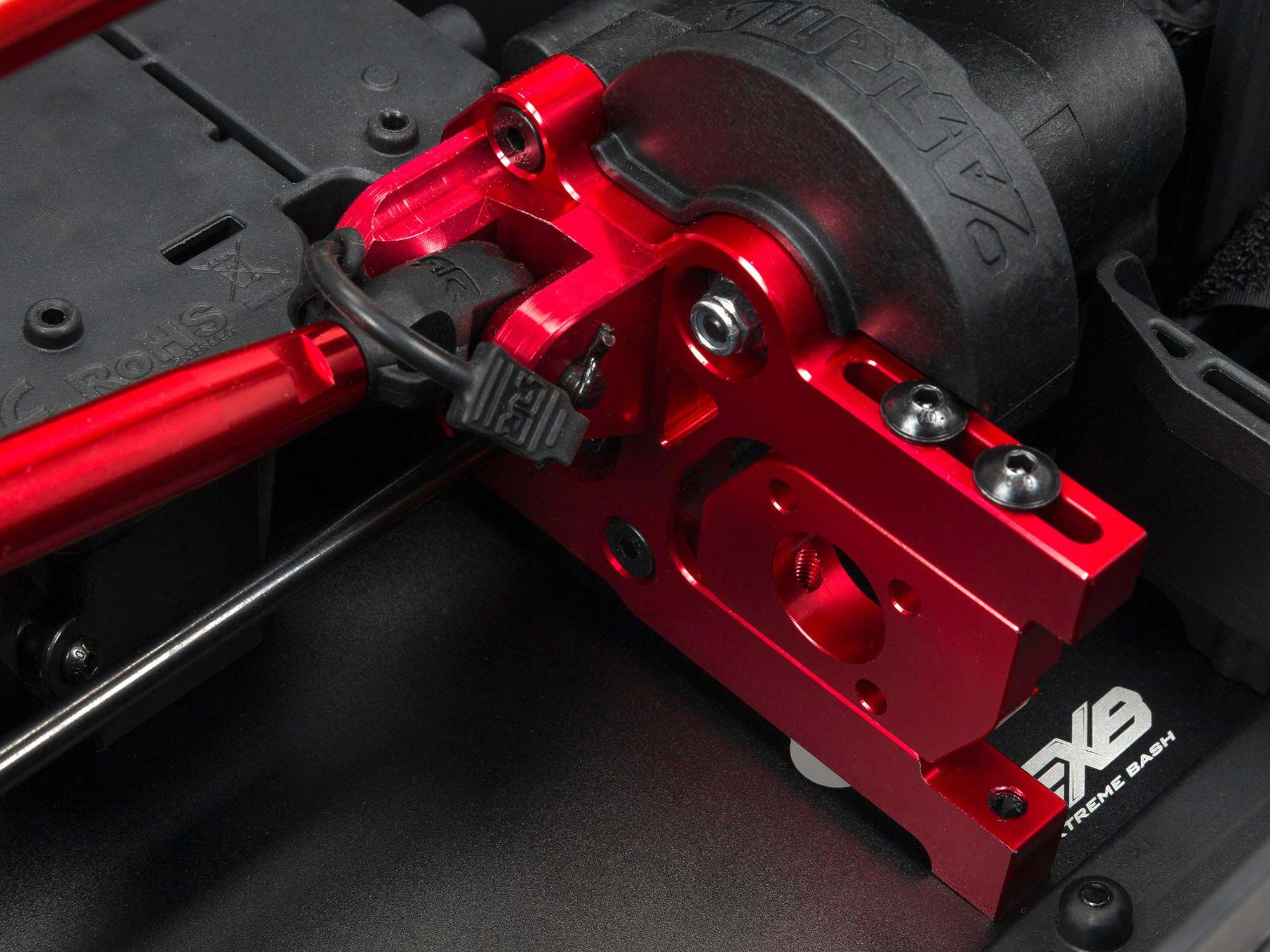

  • Easy-access 3-bolt sliding motor mount for quick motor removal
  • Ultra-thick composite front and rear shock towers
  • Black anodised aluminium rear lower chassis brace
  • Multi-structured centre brace system for maximum durability
  • Heavy-duty drivetrain
  • Easy-access front and rear diff module design
  • All-metal diff outdrives and gearbox internals

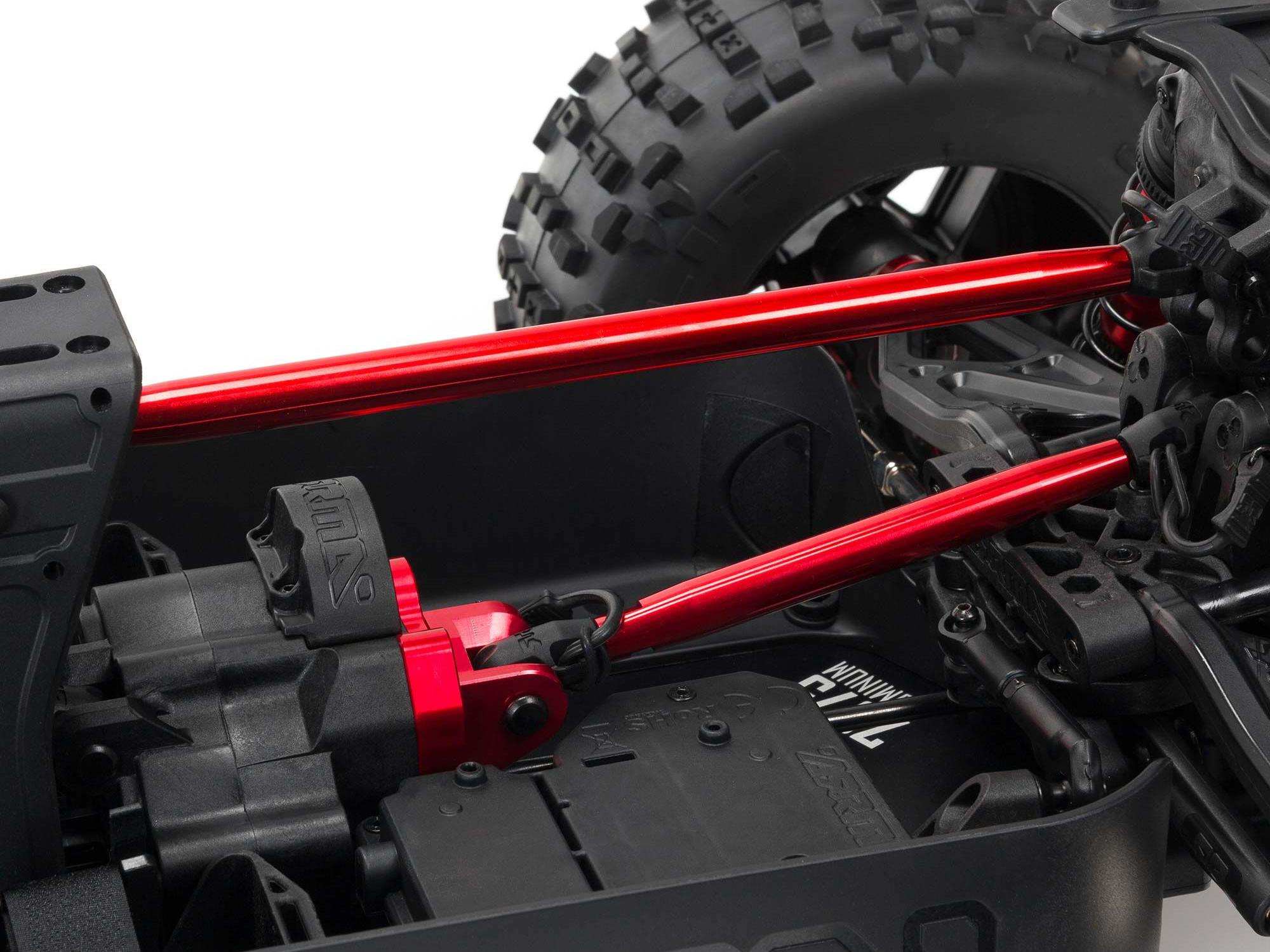

  • Durable steel driveshafts

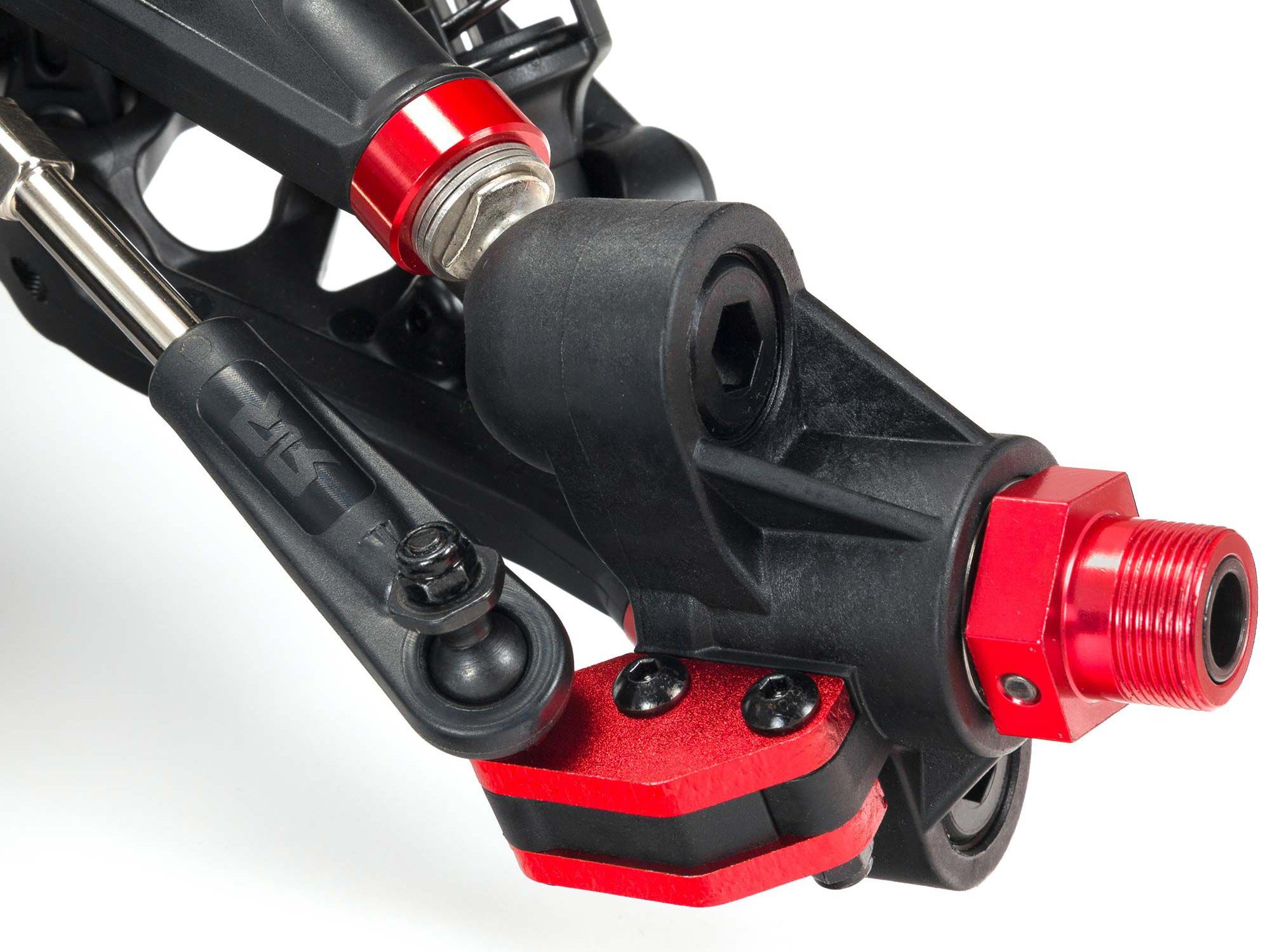

  • Durable wheel hubs for increased strength
  • Easy-access waterproof electronics module
  • Center body support and brace for maximum durability
  • Strong composite chassis side pods
  • 2-year warranty (see website support for details)

In The Box

  • (1) ARRMA OUTCAST 1/5 4WD Extreme Bash Stunt Truck Roller
  • (1) Optional 39T Spur Gear
  • (1) 49 Series Motor Plate
  • (1) 56 Series Motor Plate
  • (1) 1/5 Servo Mounts
  • (1) 1/6 Servo Mounts
  • (1) Product Manual

Needed To Complete

  • Motor
  • Pinion
  • Electronic Speed Control
  • Transmitter
  • Receiver
  • Steering Servo
  • Batteries
  • Charger
  • LiPo Charging Bag

Full Spec

  • Approximate Assembly Time: 1 – 3 hours
  • Maximum Motor Size: 56mm Diamete, 113mm Length
  • Maximum Battery Size: 170x55x53mm
  • Ball Bearings: Full set, rubber shielded
  • Body: Painted, decalled and trimmed
  • Chassis: 5mm plate, 7075-T6 aluminum
  • Completion Level: Roller
  • Differential: Gear type, 3 diffs total
  • Drivetrain: 4WD
  • Drive Type: Forward/Brake/Reverse
  • Final Drive Ratio: 9.1 – 28.4
  • Front Track: 23.46″ (596mm)
  • Internal Gear Ratio: 9.06
  • Product Height: 12.01″ (305 mm)
  • Product Length: 28.11″ (714 mm)
  • Product Weight: 23.32lbs (10.6kg)
  • Product Width: 23.46″ (596 mm)
  • Rear Track: 23.46″ (596mm)
  • Scale: 1/5
  • Shock Type: Aluminum body oil-filled coil-over springs
  • Spur Gear: 47T fitted, 39T included
  • Suspension: Independent
  • Water-Resistant: Yes
  • Wheelbase: 16.93″ (430 mm)

Arrma 1/5 OUTCAST 4WD EXB

To see more Arrma branded cars click the link: Arrma Cars

We also have link here to see endless Arrma videos: Arrma Youtube

Specification

Specification

Assembly

Rolling Chassis

Drive

4wd

Brand

Arrma

Motor Type

Brushless

Scale

1:5

Surface type

Off road
