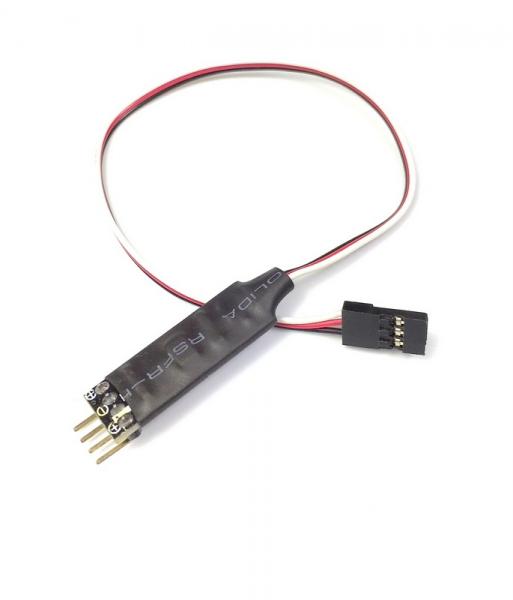

Absima Control Switch for Light (Radio Channel 3) 2020050

Description

Absima Control Switch for Light (Radio Channel 3) 2020050

Connect the switch between the receiver (channel 3) and your electronic devices like light unit.
If you press the button for the 3rd channel on your radio, you can switch between the 5 different modes

• 1.) = Customer A switch on / Customer B switch off ·
• 2.) = Customer A switch off / Customer B switch on
• 3.) = Customer A & B switch on  ·
• 4.) = Customer A & B switch on – blink mode
• 5.) = Customer A & B switch off

• Power supply via receiver 3.7 – 6.0 V
• Maximum load 20mA
• Cable length 190 mm
• Receiver connection: JR
• Dimensions module (L / W / H) 44 x 12 x 7 mm
• Weight 4 g
• Not suitable for Absima CR6 radios
