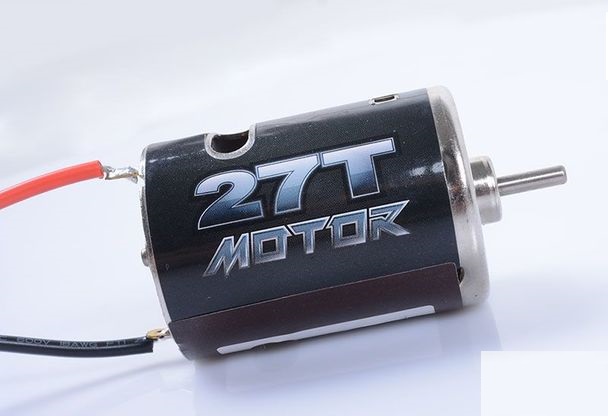

RC4WD 540 Crawler Scaler Brushed Motor 27T

Description

Specifications:
Custom Made 540 Steel Case
Chrome Plated Case
Build in Capacitor for Minimizing Glitch
High Torque Magnet and Rotor
Small Footprint (50mm long)
Tuned for Rock Climbing and Scale Driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Length: 1.96in / 50mm
Output Shaft Length: 0.43in / 11mm
Output Shaft OD: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Weight: 5.57oz / 158g

Performance Specs:
(At No Load) RPM @ 7.2V : 15000 +10% , 1.2Amp Current
(Rated load) RPM @ 7.2V : 13600 +10%, 5.02Amp Current
Designed Operating Temperature Range: -10_C to +60_C
Shaft end play: 0.1mm to 0.5mm
Noise Level: < 78DB
